Customizable SMT Double Splice Tape 4mm With Superior Adhesion

Product Categories

Shenzhen Kanghongjin Electronics Co., Ltd

Contact Now

Name: Customizable SMT Double Splice Tape 4mm With Superior Adhesion
Brand: KangHongJin
Price: 1 USD

Brand Name : KangHongJin

Model Number : M21 series

Certification : RoHS

Place of Origin : Guangdong, China

Product Name : M21 series

Material : PET

High Light : 4mm SMT Splice Tape, Custom SMT Splice Tape, 4mm Splice Carrier Tapes

Contact Now

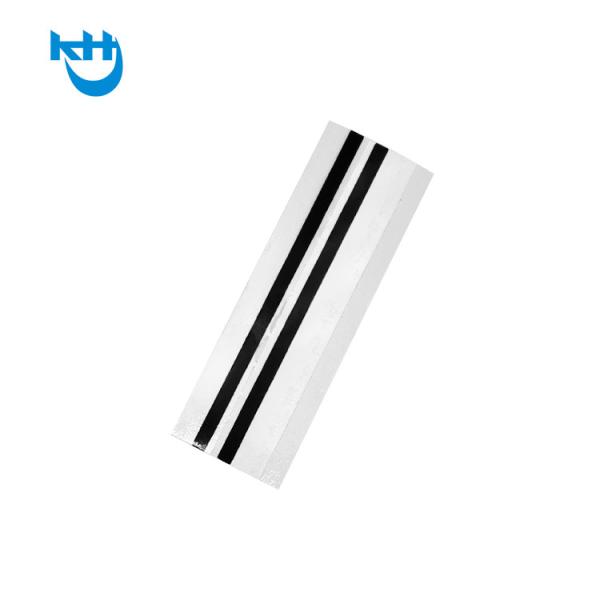

M21 series SMT Custom Size 4mm Special Splice Tape Customizable SMT Double Splice Tape 4mm With Superior Adhesion

DESCRIPTION

M21 series Acrylic Adhesive PET 4mm Splicing Tape For SMT Process, and the tape is made by our

produced patent material with superior adhesion.

Part (reel)	Dimensions (pc)	Material	Package
M2104 (4mm)	2mm x 40mm	PET	500pcs/box

APPLICATION	ADVANTAGES
1. Black double strips of PET tape used to	1. Increase Pick and Place machine output
join SMT carrier tapes	by 5% - 30%
2. Possible to use with or without the	2. Reduce reel change downtime
splice tool and clip	3. Decrease machine abrasion by reducing
3. Available for 4mm carrier tapes only.	the need to reload the feeder

INSTRUCTIONS

1. Use the cutting tool to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the holes of the carrier tapes (cover tape down) with the guide indentations.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.

6. Remove and discard the clear plastic cover to complete the splice.

ceo@szsmt. com

Product Tags:

SMT Double Splice Tape 4mm
